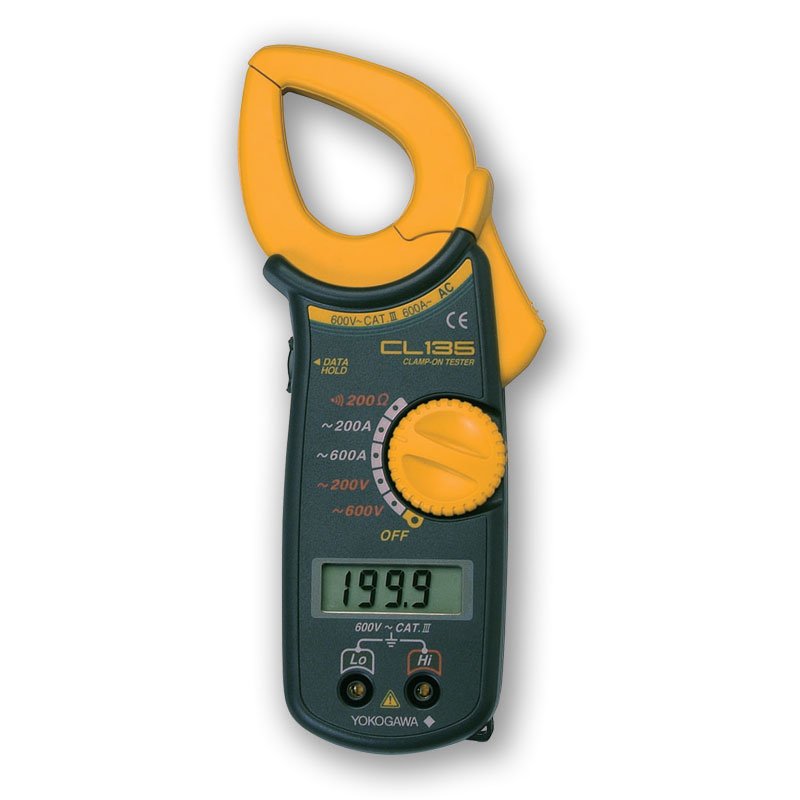

YOKOGAWA CL135 Clamp On AC Current Tester

YOKOGAWA CL135 Clamp On AC Current Tester

Description :

CL100 series and 2343 series have basic function of AC current measurement. These clamps allow you to measure current range from 20mA to 1000A. Choose your desired diameter of measurable conductor from 24mm to 54mm.

General Specifications :

• Parameter    Specification
• Method of Detection    True RMS
• Diameter of Measurable conductor    Ø30MM at maximum
• Display    LCD (Digital Display: 1999 Counts)
• Response Time (Approx.)    1 Seconds (2 seconds on Resistance renge)
• Range Switching    Manual-Range
• Data Hold    On All range
• Ambient Temperature and Humidity    -10-50˚C, 85% RH or less (no condensation)
• Up to 30˚C, 90% RH
• Up to 40˚C, 75% RH
• Up to 50˚C, 45% RH
• Influence of external Magnetic Field    2A or less at 400 A/m
• Influence of Conductor Position    ±3% or Less
• Circuit Voltage    600Vrms or less
• Withstanding Voltage    5.55kV AC for one minute
• Power Supply     6F22(006P) x1; or 6LR61 x 2
• Battery Life    Approx. 200 hours (continuous)
• Consumed Current    Approx. 2mA
• Auto Power-off    Approx. 10 Minutes
• Dimensions    Approx. 93(W)x210(H)x40(D)mm
• Weight    Approx. 400g

Features :

• Mean value display
• AC Current: 200A/600A
• 30mm in diameter of measurable conductor
• Data hold function
• AC voltage and resistance measurements
• Approved for comformity to safety standards EN61010-1,EN61010-2-031, EN61010-2-032 (CAT. III 600 V)
