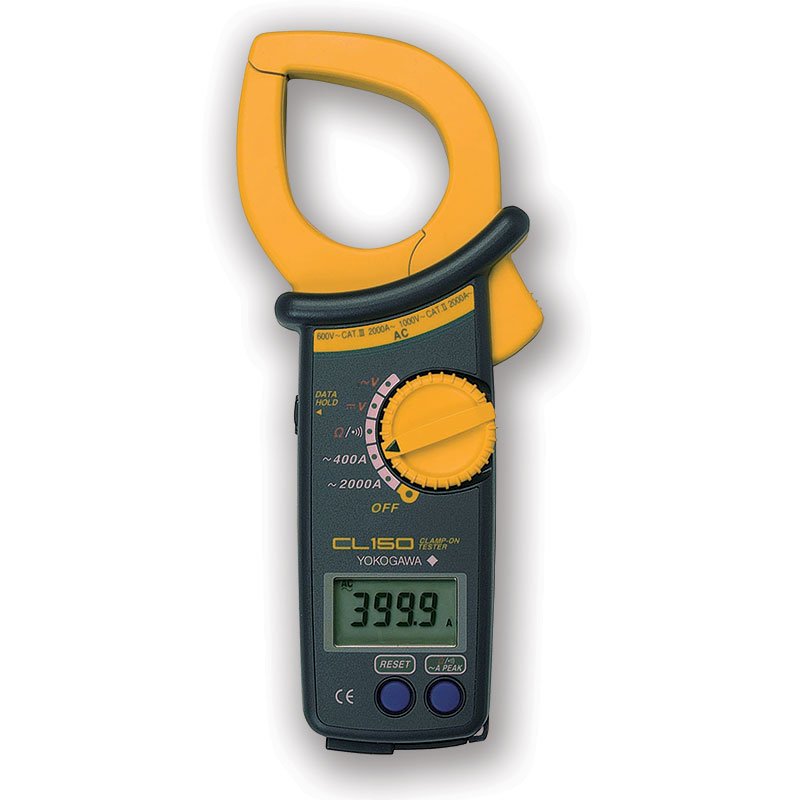

YOKOGAWA CL150 Clamp On AC Current Tester

YOKOGAWA CL150 Clamp On AC Current Tester have basic function of AC current measurement. These clamps allow you to measure current range from 20mA to 1000A. Choose your desired diameter of measurable conductor from 24mm to 54mm.

General Specifications :

• Parameter    Specification
• Method of Detection    Mean Value
• Diameter of Measurable conductor    Ø54MM at maximum
• Display    LCD (Digital Display: 3999 Counts)
• Response Time (Approx.)    2 Seconds
• Peak Hold    On AC Current Range
• Data Hold    On All range
• Ambient Temperature and Humidity    0-40˚C, 85% RH or less (no condensation)
• Influence of external Magnetic Field    1A or less at 400 A/m
• Influence of Conductor Position    ±(2.0%rdg + 3dgt) or Less
• Circuit Voltage    1000Vrms or less
• Withstanding Voltage    5.55kV AC for one minute
• Power Supply    R6P(SUM-3) x2; or LR6 x2
• Battery Life    Approx. 150 hours (continuous)
• Consumed Current    Approx. 5mA
• Sleep Function    Automatically powered down in about 10 minutes after last switch operation
• Dimensions    Approx. 105(W)x247(H)x49(D)mm
• Weight    Approx. 470g

Features :

• Mean value display
• AC Current: 200A/600A
• 30mm in diameter of measurable conductor
• Data hold function
• AC voltage and resistance measurements
• Approved for comformity to safety standards EN61010-1,EN61010-2-031, EN61010-2-032 (CAT. III 600 V)
