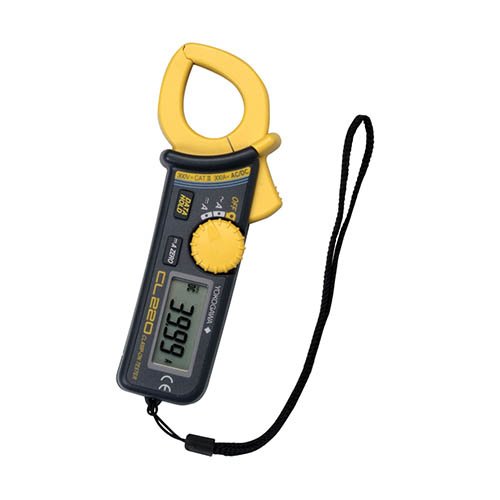

YOKOGAWA CL220 Clamp On AC/DC Current Tester

YOKOGAWA CL220 Clamp On AC/DC Current Tester has basic function of AC/DC current measurement. These clamps allow you to measure current range from 40mA to 2000A. Choose your desired diameter of measurable conductor from 24mm to 55mm.

General Specifications :

• Parameter    Specification
• Method of Detection    Mean Value
• Diameter of Measurable conductor    Ø24MM at maximum
• Display    LCD (Digital Display: 3999 Counts)
• Response Time (Approx.)    2 Seconds
• Range Switching    Auto-Range
• Data Hold    On All range
• Ambient Temperature and Humidity    0-40˚C, 85% RH or less (no condensation)
• Influence of external Magnetic Field    1A or less at 400 A/m
• Influence of Conductor Position    ±(2% rdg + 5dgt)or Less
• Circuit Voltage    300Vrms or less
• Withstanding Voltage    3.7kV AC for one minute
• Power Supply    LR-44 x2(3V) or SR-44 x2
• Battery Life    Approx. 11 hours (continuous)
• Consumed Current    Approx. 9mA
• Sleep Function    Automatically powered down in about 5 minutes after last switch operation
• Dimensions    Approx. 59(W)x147(H)x25(D)mm
• Weight    Approx. 100g

Features :

• Light weight & compact design
• Mean value display
• AC Current: 40/300A
• 24mm in diameter of measurable conductor
• Sleep function
• Approved for conformity to safety standards EN61010-1, EN61010-2-032 (CAT. III 300 V)
