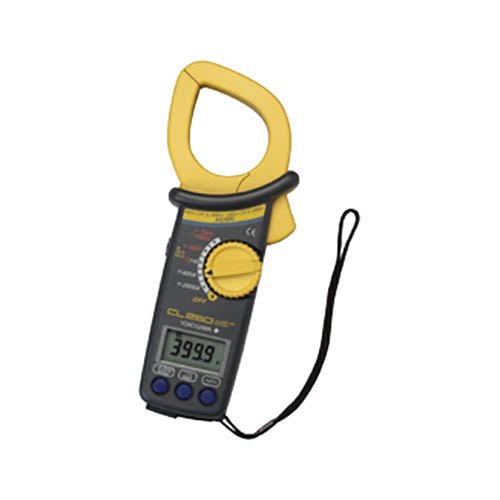

YOKOGAWA CL250 Clamp On AC/DC Current Tester

YOKOGAWA CL250 Clamp On AC/DC Current Tester has basic function of AC/DC current measurement. These clamps allow you to measure current range from 40mA to 2000A. Choose your desired diameter of measurable conductor from 24mm to 55mm.

Specifications :

• Parameter    Specification
• Method of Detection    True RMS
• Diameter of Measurable conductor    Ø33MM at maximum
• Display    LCD (Digital Display: 3999 Counts)
• Response Time (Approx.)    2 Seconds
• Range Switching    Auto-Range
• Data Hold    On All range
• Peak Hold    On AC/DC Current Range; AC/DC Voltage Range
• Ambient Temperature and Humidity    0-40˚C, 90% RH or less (no condensation)
• Influence of external Magnetic Field    –
• Influence of Conductor Position    ±2% or Less
• Circuit Voltage    600Vrms or less
• Withstanding Voltage    5.55kV AC for one minute
• Power Supply     6F22(006P) x1; or 6LR61 x 2
• Battery Life    Approx. 15 hours (continuous)
• Consumed Current    Approx. 15mA
• Sleep Function    Automatically powered down in about 30 minutes after last switch operation
• Dimensions    Approx. 91(W)x210(H)x40(D)mm
• Weight    Approx. 450g

Features :

• True RMS Method of Detection
• 33mm in diameter of measurable conductor
• Sleep function
• AC voltage and resistance measurements
• Approved for conformity to safety standard EN61010-1, EN61010-2-031, EN61010-2-032 (CAT. III 600 V)
