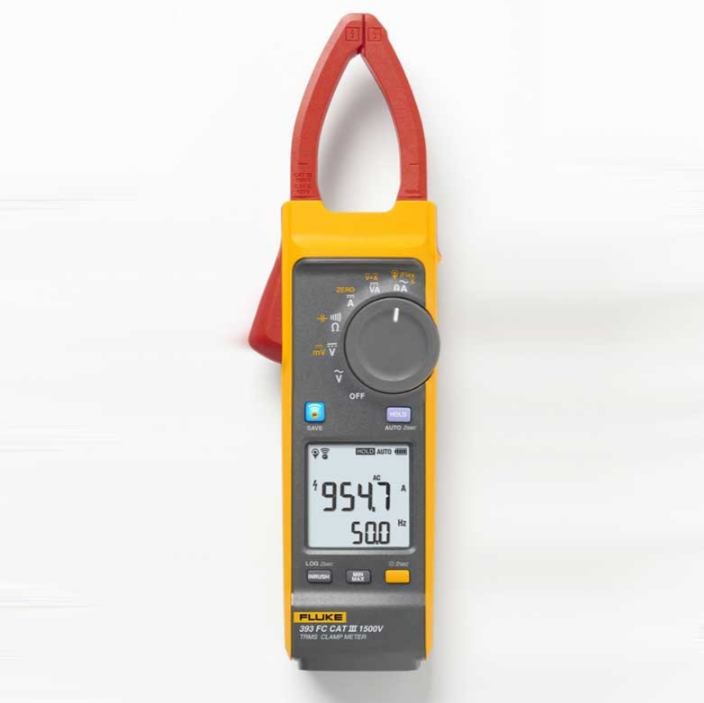

Fluke 393 FC Solar Clamp Meter CAT III 1500 V

Fluke 393 FC CAT III 1500 V True-rms Solar Clamp Meter dengan iFlex dirancang untuk teknisi instalasi fotovoltaik surya (PV) dan profesional pemeliharaan yang bekerja di lingkungan DC tegangan tinggi: susunan PV, tenaga angin, jalur kereta listrik, bank baterai pusat data untuk pasokan listrik yang tidak pernah terputus. Meteran penjepit akan mengukur hingga 1500 V DC dan 1000 V AC dengan kabel uji, dan hingga 999,9 A DC atau AC melalui rahang penjepit.

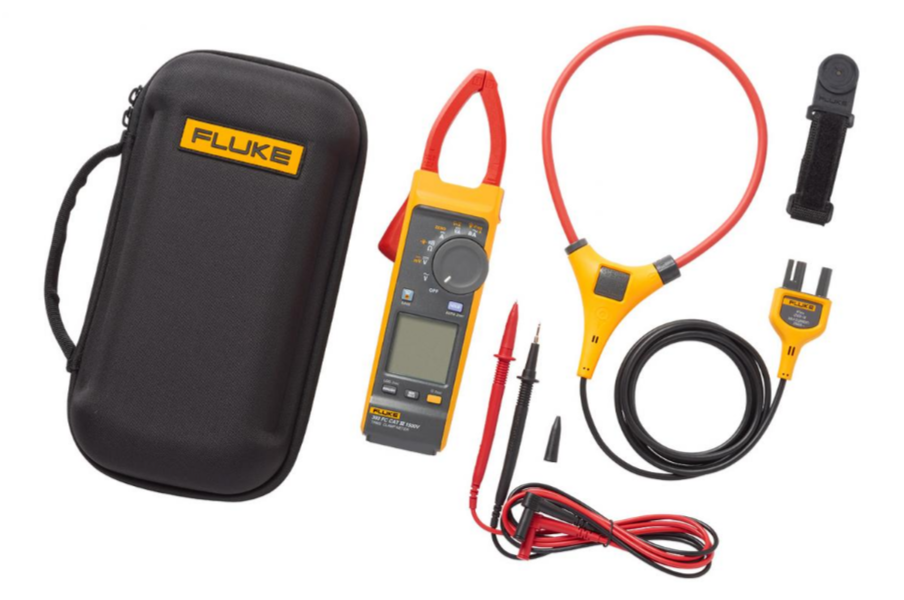

Probe arus fleksibel iFlex yang disertakan memperluas pengukuran arus AC hingga 2500 A. 393 memiliki rahang tipis, memberi Anda akses ke kabel dalam kotak penggabung yang penuh sesak. Selain itu, kabel uji dirancang dengan mempertimbangkan pekerjaan Anda, dan juga diberi peringkat CAT III 1500 V DC.

Fungsi utama meteran penjepit surya

Berperingkat IP54, ideal untuk pekerjaan di luar ruangan termasuk pengujian panel PV
Pengukuran daya DC, menunjukkan pembacaan dalam kVA
Indikator Polaritas Audio membantu mencegah kesalahan kabel yang tidak disengaja
Kontinuitas Visual memberikan lampu hijau terang di layar, ideal saat bekerja di lingkungan gelap dan bising
Pencatatan dan pelaporan hasil pengujian melalui perangkat lunak Fluke Connect

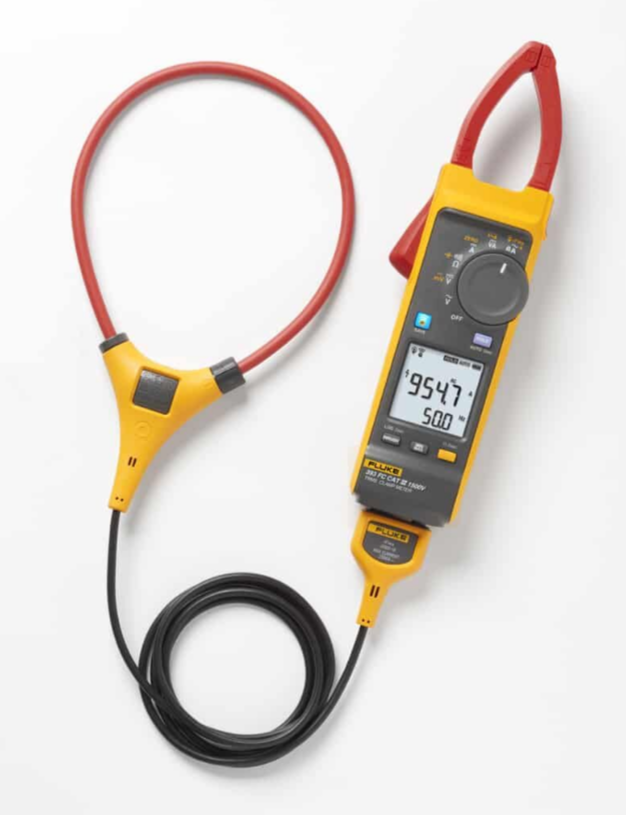

Saat mengukur arus ac, probe arus fleksibel iFlex yang disertakan memberi Anda akses tak tertandingi ke kabel dalam ruang sempit. Probe iFlex dapat diputar melalui ruang yang sangat kecil dan memberikan pengukuran arus yang akurat.

Fitur utama

• Ukur secara aman dengan meteran penjepit terukur CAT III 1500 V
• Rahang tipis untuk akses ke kabel dalam kotak penggabung yang penuh sesak
• Nilai IP54 yang kokoh untuk penggunaan di luar ruangan dan instalasi tenaga surya
• Bekerja secara efisien dengan pengukuran daya DC, polaritas audio, dan kontinuitas visual

Specifications: Fluke 393 FC Solar Clamp Meter CAT III 1500 V

Specifications:
General
Maximum voltage between any Terminal and Earth Ground
AC	1000 V
DC	1500 V
Batteries	2 AA IEC LR6 alkaline
Display	Dual display with backlight
Automatic Power Off	20 minutes
Electrical
Accuracy
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).
Temperature Coefficients	Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % + 5 digits (10 Hz to 100 Hz)
	2.5 % + 5 digits (100 Hz to 500 Hz)
Crest Factor (50/60 Hz)	2.5 @600.0 A
	3.0 @500.0 A
	1.42 @999.9 A
	Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	999.9 A
	2500 A
Resolution	0.1 A (≤999.9 A)
	1 A (≤2500 A)
Accuracy	3 % RD + 5 digits (10 Hz to 500 Hz)
Crest Factor (50/60Hz)	2.5 @1400 A
	3.0 @1100 A
	1.42@2500 A
	Add 2 % for C.F. >2
Position Sensitivity
Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5 %
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0 %
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % RD + 5 digits[1]
	[1] When using the ZERO (B) function to compensate for offsets.
AC Voltage
Range	600.0 V
	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1 % RD + 5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V
	1500 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1500 V)
Accuracy	1 % RD + 5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % RD + 5 digits
Amps Frequency: Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A
	10 Hz to 100 Hz, ≥5 A
	100 Hz to 500 Hz, ≥10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A
	20 Hz to 100 Hz, ≥20 A
	100 Hz to 500 Hz, ≥25 A
Voltage Frequency
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥5 V
	20 Hz to 100 Hz, ≥5 V
	100 Hz to 500 Hz, ≥10 V
DC Power
Range	600.0 kVA (600.0 V dc range)
	1500 kVA (1500 V dc range)
Resolution	0.1 kVA
	1 kVA
Accuracy	2 % RD + 2.0 kVA
	2 % RD + 20 kVA
Resistance
Range	600.0 Ω
	6000 Ω
	60.00 kΩ
Resolution	0.1 Ω (≤600.0 Ω)
	1 Ω (≤6000 Ω)
	0.01 kΩ (≤60.00 kΩ)
Accuracy	1 % RD + 5 digits
Capacitance
Range	100.0 μF
	1000 μF
Resolution	0.1 μF (≤100.0 μF)
	1 μF (≤1000 μF)
Accuracy	1 % RD + 5 digits
Inrush Trigger Level	5 A
Mechanical
Size (L x W x H)	281 mm x 84 mm x 49 mm
Weight (with batteries)	520 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length
(head to electronics connector)	1.8 m
Environmental
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	Non condensing (<10°C)
	≤90 % RH (at 10 °C to 30 °C)
	≤75 % RH (at 30 °C to 40 °C)
	≤45 % RH (at 40 °C to 50 °C)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Ingress Protection (IP) Rating	IEC 60529: IP54 non-operating
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1, Pollution Degree 2
Measurement	IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V
	IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V
Wireless Radio
Radio frequency certification	FCC ID: T68-FBLE, IC: 6627A-FBLE
Wireless Radio Frequency Range	2400 MHz to 2483.5 MHz
Output Power	<100 mW
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU.
The full text of the EU declaration is available at the following Internet address:
www.fluke.com/en-us/declaration-of-conformity
