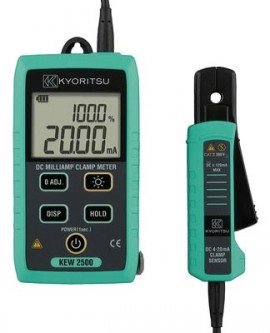

KYORITSU 2500 DC Milliamp Clamp Meter

KYORITSU 2500 DC Milliamp Clamp Meter

Description :

DC A
20/100mA (Auto ranging)
±0.2%rdg±5dgt    (0.00mA ~ 21.49mA)
±1.0%rdg±5dgt    (21.0mA ~ 120.0mA)
Conductor size    Ø6mm max.
Analog output    Recorder: DC 1000mV against DC 100mA
Withstand voltage    2210V AC for 5 seconds
Applicable standards    IEC 61010-1, 61010-2-030 CAT.II 300V
IEC 61010-2-032
IEC 61326-1, 61326-2-2
IEC 60529 IP40
Operating temperature & humidity    -10 ~ +50ºC < 85%
Storage temperature & humidity    -20 ~ +60ºC < 85%
Power source    R6/LR6 (AA) (1.5V) × 4
Dimensions    111(L) × 61(W) × 40(D)mm : Display unit
104(L) × 34(W) × 20(D)mm : Sensor
700mm : Sensor cable
Weight    Approx. 290g (including batteries)
Accessories    9096 (Carrying case), LR6 (AA) × 4,
Instruction Manual, Calibration certificate
Optional    7256 (Output cord)

Features :

0.01mA resolution for DC current
Top class measurement 0.2% accuracy
Φ6mm clamp jaw easy to use in tight places
Measurement from 0.01mA to 120.0mA
Dual display with backlight shows both mA measurement and percent of 4-20 mA span
Spotlight for illuminating measurement point
Analog output terminal for recorder connection
Complies with IEC 61010-1 CAT.II 300V
