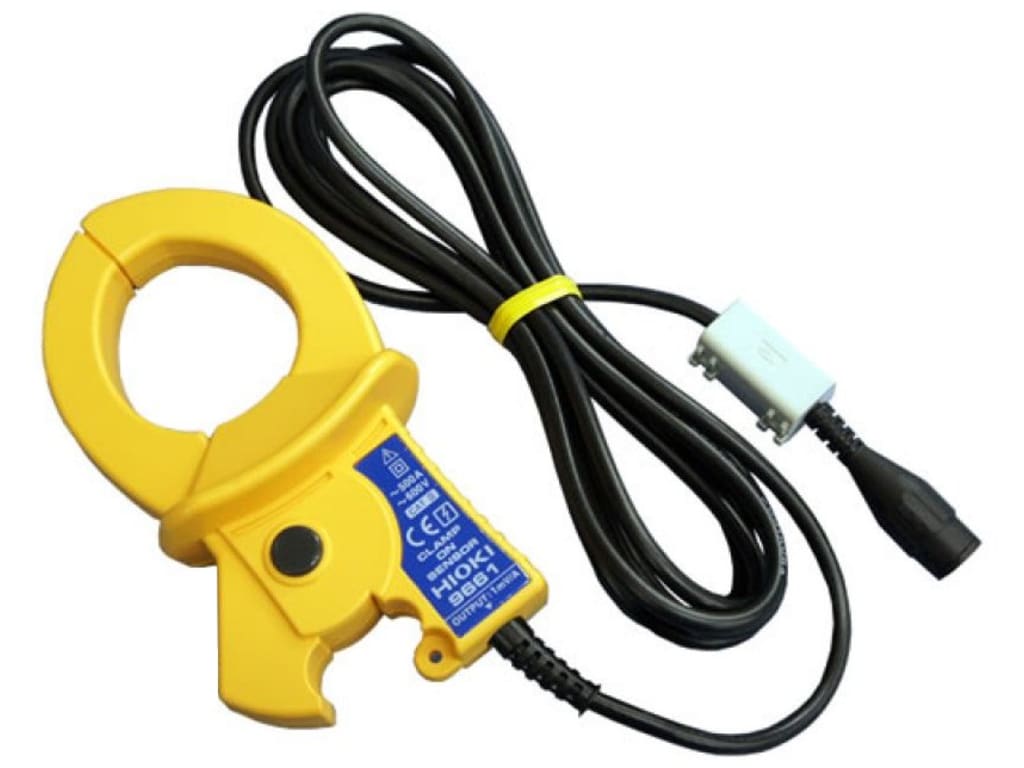

Hioki 9661 Clamp On Sensor
Rp 4.500.000 *Inc. PPN
CAT III 600V
Key Features
• For inverter devices or commercial power lines
• Measure up to 500 A
Related Products
Hioki 9661 Clamp On Sensor
hioki 9661 sebuah tang jepit untuk sensor pengukuran load current, sebuah voltage output sensor 500A AC. Sensor clamp hioki adalah yang terbaik dikelasnya yang digunakan bersamaan dengan power meter dan power quality analyzer. Hioki 9661 ialah sebuah clamp sensor 500A AC dengan voltage output untuk mengukur load current.
| RATED MEASUREMENT CURRENT | 500 A AC |
|---|---|
| MAX. MEASUREMENT CURRENT | Continuous 550 A (45 to 66 Hz) |
| OUTPUT RATE | 1 mV AC/ A |
| AMPLITUDE ACCURACY (45 TO 66 HZ) | ±0.3% rdg. ±0.01% f.s. |
| PHASE ACCURACY | ±0.5° (45 Hz to 5 kHz) |
| AMPLITUDE FREQUENCY CHARACTERISTICS | Within ±1% at 40 Hz – 5 kHz (deviation from amplitude accuracy) |
| MAX. RATED VOLTAGE TO EARTH | 600 V AC rms or less |
| MEASURABLE CONDUCTOR DIAMETER | φ 46 mm (1.81 in) or less |
| OPERATING TEMPERATURE AND HUMIDITY | 0°C to 50°C (32°F to 122°F), 80% RH or less (no condensation) |
| DUSTPROOFNESS AND WATERPROOFNESS | N/A |
| DIMENSIONS AND MASS | 78 mm (3.07 in)W × 152 mm (5.98 in)H × 42 mm (1.65 in)D, 380 g (13.4 oz) Cord length 3 m (9.84 ft), Output terminal: BNC |
Specification: Hioki 9661 Clamp On Sensor
|
||||||
| Dimensions | ||||||
|---|---|---|---|---|---|---|
|
||||||
